How To Build A Picnic Table? – Timelessly And Easy To Make

How to build a picnic table? You can show off your skills of making your very own picnic table, save money and surprise everyone.

Family is one of the blessings that we are bestowed on in this life. But not everyone is lucky enough to have their family around them all the time. There are those who have been separated from their loved ones due to distant work or college or marriage, etc.

More...

But on those rare moments that the entire family is around it is good to make memories. Weather your family got together for Ester or Christmas or just to spend a couple of long summer weekends, an outdoor meal will help you collect precious memories.

Infect, it is one of the finest joy of life to be able to turn a simple meal into a mini party where you can ask a family member to help you setup the picnic table, toss some salad in your huge family bowl right there on that tremendous family table.

Grill some patties to serve them hot to your family members on your picnics table and also line up a few gifts on the table as a token of appreciation of such get together. But wait, what if you do not have a picnic table, how on Earth are you going to enjoy an outdoor meal?

Picnic Table

Picnic Table

How To Make A Picnic Table

Well, next time you invite your family over for a family lunch you cannot just have an outdoor lunch but you can also show off your skills of making your very own picnic table, save money and surprise everyone.

  • Things Required
  • Cut List

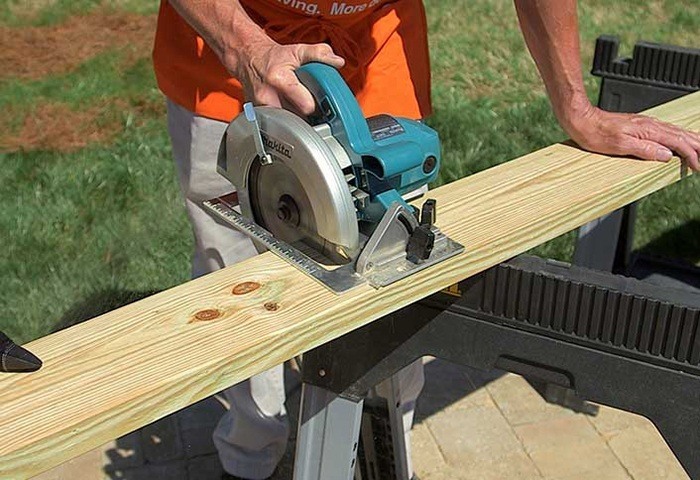

SLABS Cutting

CUT THE TABLE SLABS via THE HOME DEPOT

CUT THE TABLE SLABS via THE HOME DEPOT

This is the first step in cutting material for table making. Using a circular saw Cut table slats to size. Keep cutting the slabs as you’ll remove curved edges later. Afterwards cut down 3 table supports.

On support table cut 60- degree angle on either end of two end of table supports.

Slats Must Be Combined Together

CLAMP THE TABLE SLATS TOGETHER via THE HOME DEPOT

CLAMP THE TABLE SLATS TOGETHER via THE HOME DEPOT

For building the picnic table you ought to clamp these slats together. These are all the fundamental thing but once followed honestly, you’ll able to get benefited by an awesome Picnic Table.

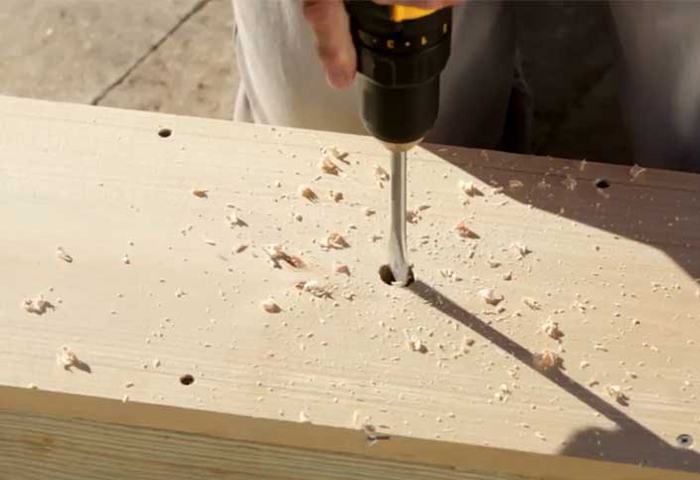

For doing so put table supports over the slats and the center one level and focused. Penetrate gaps with a mix countersink bit, boring sufficiently profound to set screw heads beneath surface.

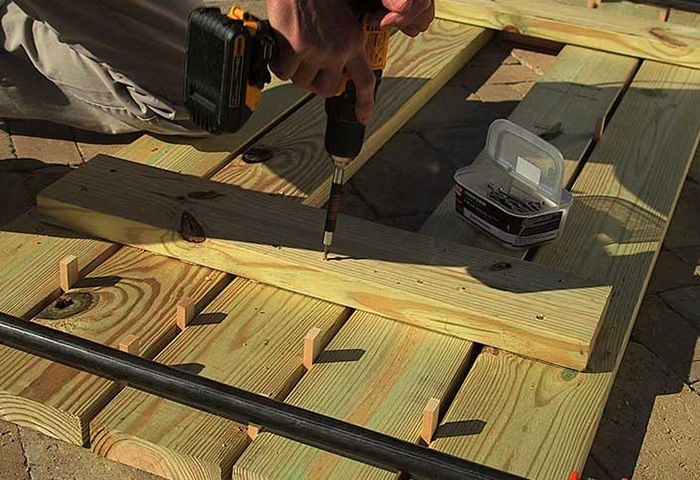

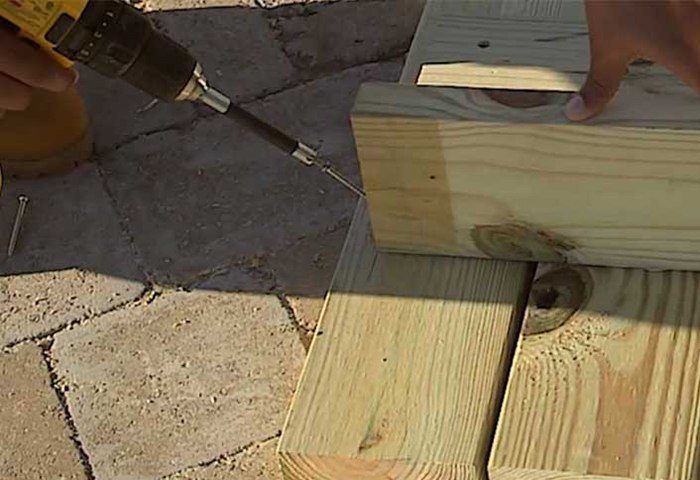

Start Screwing In Slabs

DRIVE SCREWS INTO TWO OUTERMOST SLATS via THE HOME DEPOT

DRIVE SCREWS INTO TWO OUTERMOST SLATS via THE HOME DEPOT

The next step is here to tell you how you Drive screws inside outermost slabs. Fasten two outermost slabs only with screws as a result later in construction support can be delayed, if necessary.

Screw the two end supports of the table to slats with deck screws. Afterwards attach center-table support to slat with screws.

Table Legs Are Next To Be Cut

CUT THE TABLE LEGS via THE HOME DEPOT

CUT THE TABLE LEGS via THE HOME DEPOT

Table legs should be cut an inch greater in length than their required length for proper fitting. At every leg end draw a 60- degree cut angle so positioned to give you proper length. Use a circular saw to cut at the marking.

Eliminate The Leg Corner

CUT OFF LEG CORNERS via THE HOME DEPOT

CUT OFF LEG CORNERS via THE HOME DEPOT

This step is important in making of picnic table. As the leg corner, may seem rough and additional. For cutting the corners from legs. mark a point from the outside edge of the bottom of each leg. Cut bottom of each leg from 1 ½ inches from outer edge.

With a blend square, stamp a point 1’’ from outside edge to base of every leg and remove the corner. Bang a mix square into end and draw a line starting from point to outside edge.

Removed the corner. This trims the leg so it is less inclined to trek somebody once the table is collected.​

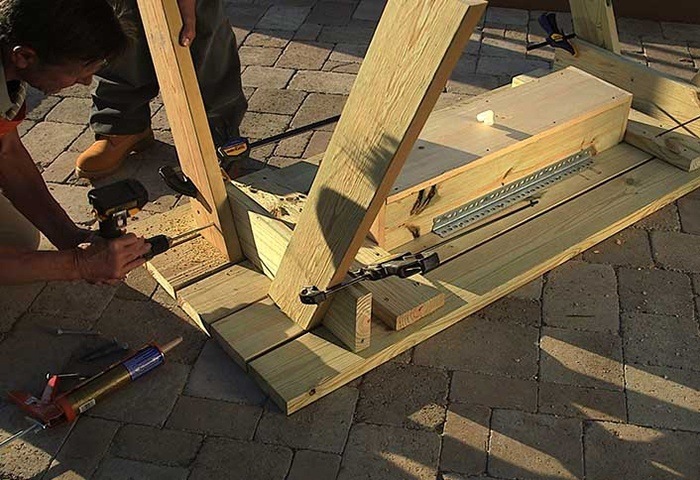

Put The Legs Together

CLAMP THE TABLE LEGS via THE HOME DEPOT

CLAMP THE TABLE LEGS via THE HOME DEPOT

Legs as we all know are the most important part of the table structure. Attach legs to end support at their outside faces and alongside their inside edge between slats in center.

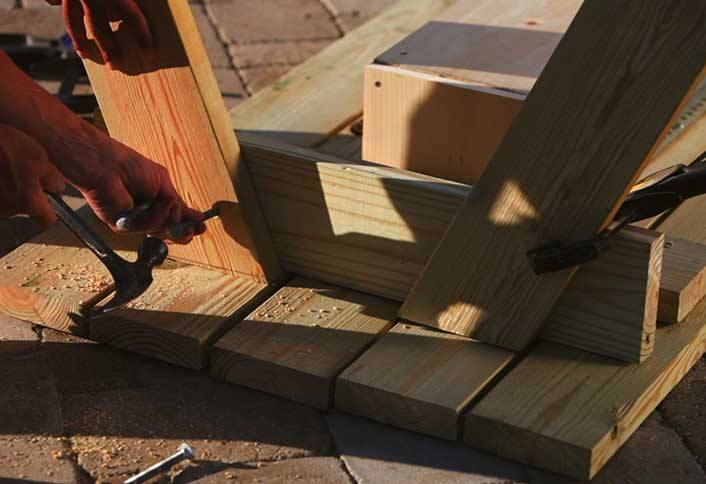

Now It’s Time For Legs Attachment

ATTACH LEGS via THE HOME DEPOT

ATTACH LEGS via THE HOME DEPOT

It is the time for leg attachment to our main assembly. Use 3” bolts to attach the logs. Bore in anti-clock wise direction for nut and washer and make holes with drill machines same the diameter as of bolt.

After sliding bolt into each hole, tight the nut with washer added.

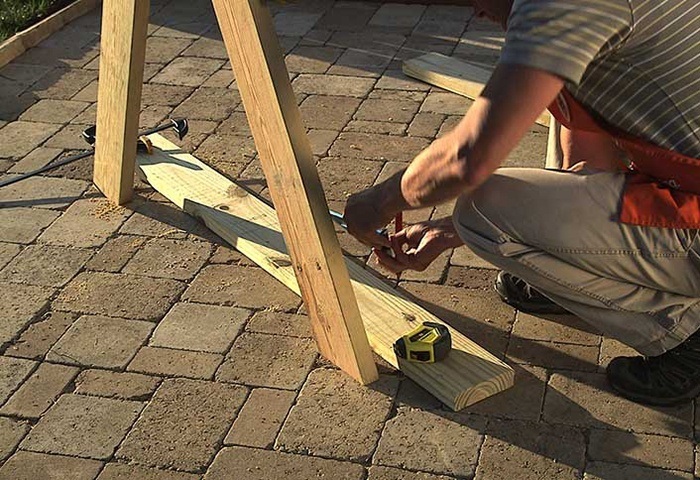

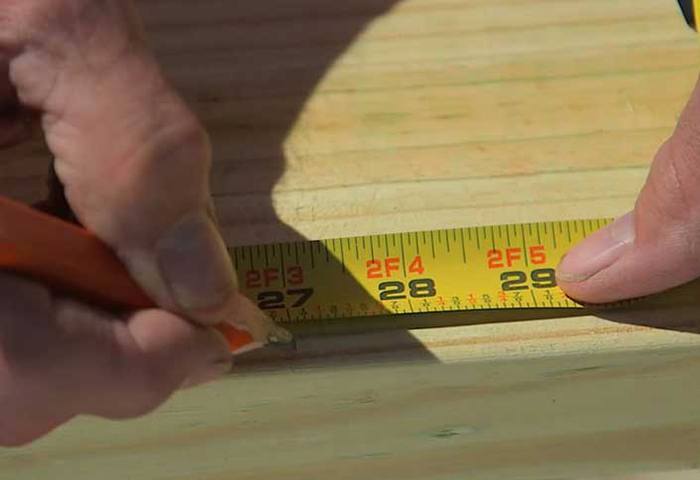

Bench Supports Marking

MARK FOR BENCH SUPPORTS via THE HOME DEPOT

MARK FOR BENCH SUPPORTS via THE HOME DEPOT

Put a stamping on the position of the seat supports on the legs by laying one arm of an encompassing square on the tabletop. Lay one arm of an encompassing square on the tabletop and put mark on position of the seat supports single the legs.

Measure up 13’’ on other arm, then work with straightedge over the square and stamp inside face of legs.

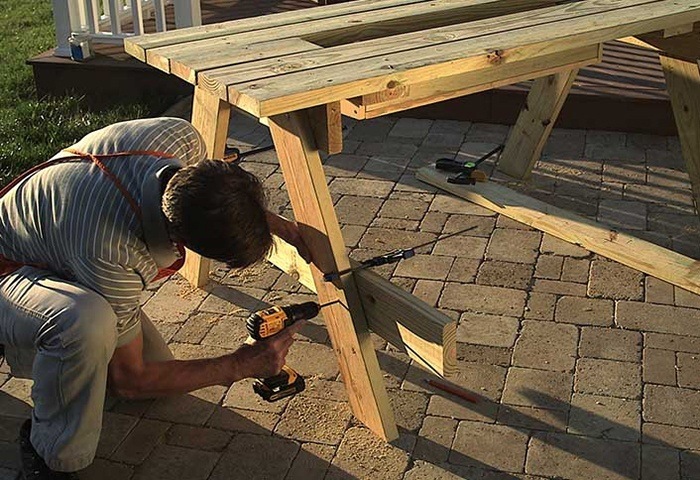

Bench Supports Shaping

SHAPE THE BENCH SUPPORTS via THE HOME DEPOT

SHAPE THE BENCH SUPPORTS via THE HOME DEPOT

Cut the seat for the finished product. Seat backings to 60-degree points. Penetrate gaps on the outside face of every leg to clip the seat backings to the legs.

Clip the seat backings to within the legs and adjust them to the blemish on every leg and focus them over the table's width. Penetrate four openings on the outside face of every leg and affix the seat bolsters with 3-inch carriage jolts.

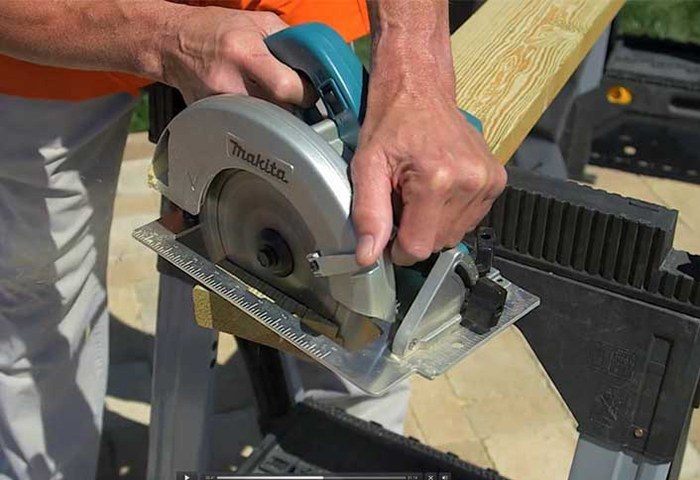

Braces Cutting

CUT THE BRACES via THE HOME DEPOT

CUT THE BRACES via THE HOME DEPOT

Stamp parallel 60-degree points on every end of the 2 x 4 supports. Utilize the round observed to cut the props.

Table Support Fixation

FIT THE CENTER TABLE SUPPORT via THE HOME DEPOT

FIT THE CENTER TABLE SUPPORT via THE HOME DEPOT

To make support structure of the table make right-angled on each brace on either side to side of support table. Cut the notch with the side bar. make measurements with combination square.

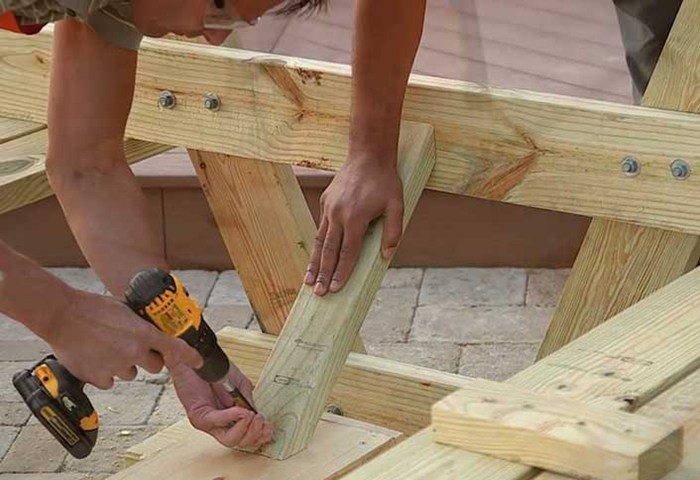

Fix Each Brace

POSITION EACH BRACE via THE HOME DEPOT

POSITION EACH BRACE via THE HOME DEPOT

Brace is something is something that actually holds the table together. Trim off of the part of the braces that stick out beyond lower edge while positioning each brace. Make pilot holes in each brace for driving the screws in.

Test-fit the braces. If it doesn’t set, then use a chisel and a sand paper to make the proper fitting. You may also need to move leg assembly in some cases. Make pilot holes at each end and drive the screws to hold tight.

Bench Slats Cutting

CUT BENCH SLATS via THE HOME DEPOT

CUT BENCH SLATS via THE HOME DEPOT

Bench cleats are important in assembling hence cut a pair of cleats as per size with both ends cut in 60-degree bevel.

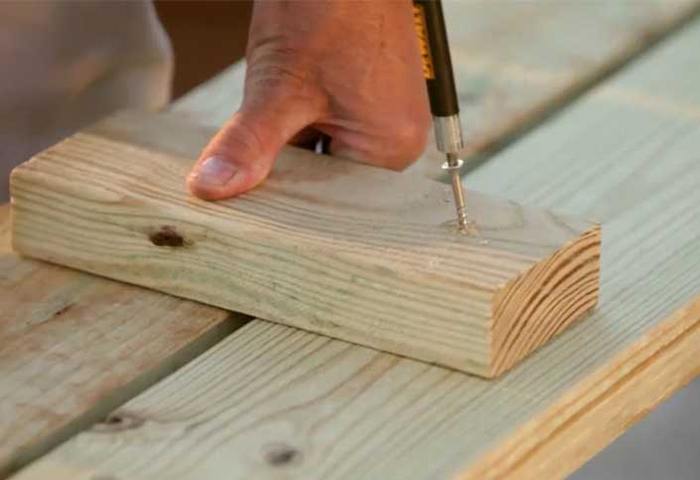

Join Together Bench Slats

CLAMP BENCH SLATS TOGETHER via THE HOME DEPOT

CLAMP BENCH SLATS TOGETHER via THE HOME DEPOT

Separate the bench slats with spacers and clamp them together. Position bench cleats at center of the bench slats and make holes with drill machine. Join them by screwing the structure in right position.

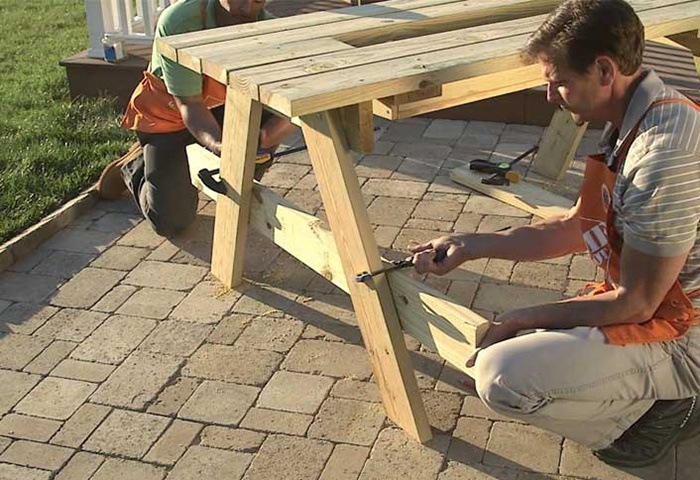

Now Join Benches To Support

CLAMP BENCHES TO SUPPORTS via THE HOME DEPOT

CLAMP BENCHES TO SUPPORTS via THE HOME DEPOT

Join benches to support by drilling holes and screwing 4’’ screws through these holes to make a strong structure that can bear certain levels of stress.

On End Of The Table Draw A Curved Edge

DRAW A CURVED EDGE ON ENDS OF TABLE via THE HOME DEPOT

DRAW A CURVED EDGE ON ENDS OF TABLE via THE HOME DEPOT

You need to drill a hole for pencil. from 10 inches from 1 end clamp a wood strip. Pivot the 1 x 2 to strip with screw. This way mark the arc and repeat the same procedure for mark on other side.

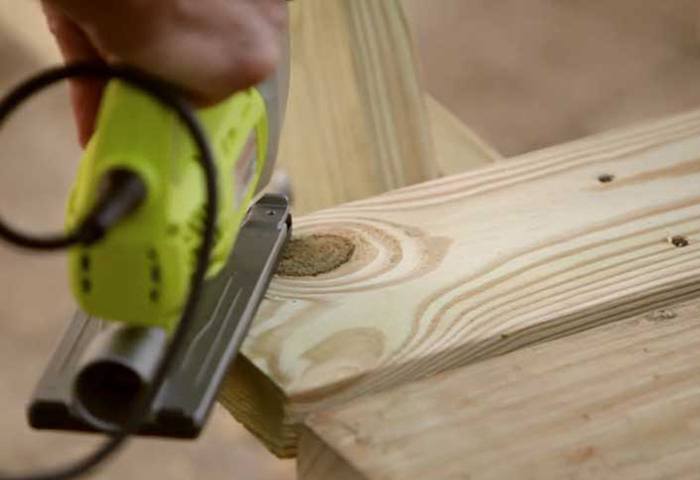

Then Cut The Curved Edge

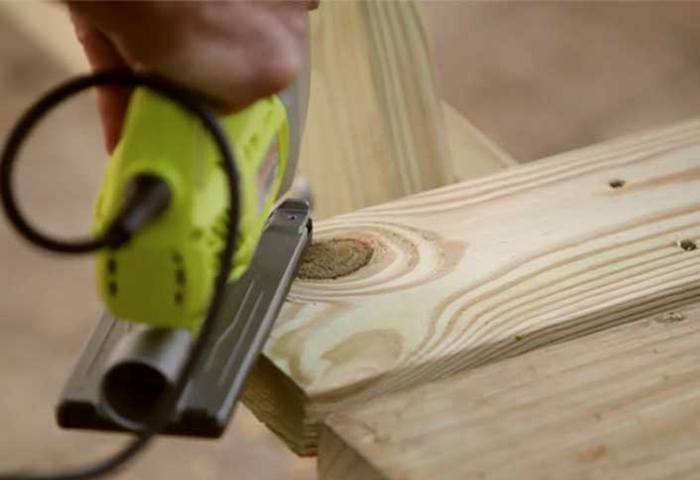

CUT THE CURVED EDGES OF THE TABLETOP via THE HOME DEPOT

CUT THE CURVED EDGES OF THE TABLETOP via THE HOME DEPOT

For cutting the curved marked edges, use saber saw on tabletop. At each end of benches repeat the drawing and cutting step.

File And finish

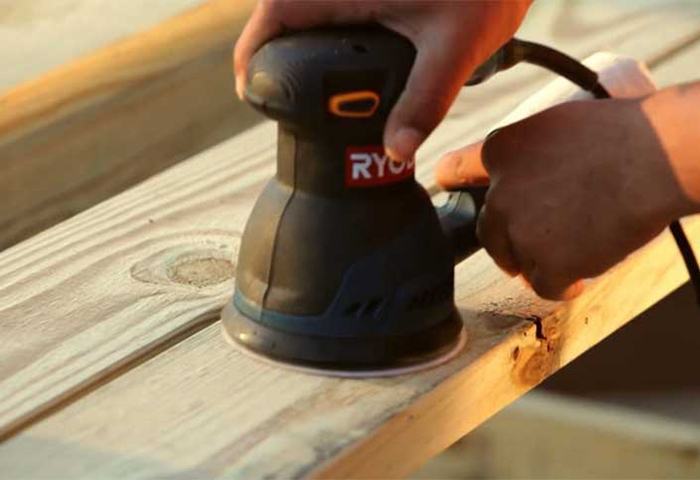

SAND AND FINISH via THE HOME DEPOT

SAND AND FINISH via THE HOME DEPOT

You need to sand finish to make the assembly smooth and usable with ergonomic design. All the rough edges must be sand before bringing it to use, especially the top section of table and benches.

If you desire to keep the natural wooden texture, then you can simply add the water proof coating and you are done with a wonderful picnic table but you may also paint it as per your choice.

Now you can enjoy a perfect supper with your family and friends all at one place.

How to Build A Picnic Table via This Old House

Final Words

Spending time with your loved ones is pleasing and full of affection and this time becomes even precious when you spend it the right way.

We often plan for picnic with our family and friends and this joy can even be doubled when we have a picnic table to gather around and enjoy our meals. If you don’t have a picnic table, then don’t panic you have this guide to help you a fantastic useful picnic table.

This guide has demonstrated an easy approach to building picnic table so you may not have to miss the chance to spend quality time with your fellows to make your time even more memorable.
